Automatic Paper Bag Machine with Flat Handles Infolded

This machine is used to make paper shopping bags with flat handles inline (handles folded inside the bag or upright when coming out) fully automatically.

  • Handle type :

    flat handles (overfolded and upright)

ZD-F350NB/450NB/550NB Paper Bag Making Machine with Flat Handles Inline

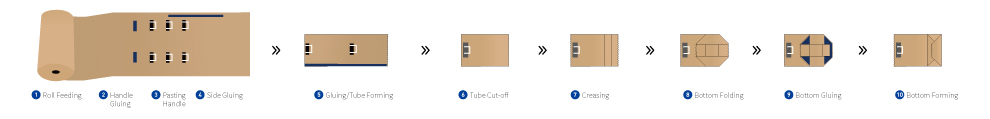

This machine is used to make paper shopping bags with flat handles inline (handles folded inside the bag or upright when coming out) fully automatically. The handle making unit makes the flat handles through the roll paper folding, cutting and pasting; afterwards, handles will be delivered to the designated position, and going through the handle pressing unit before they are sent to the bags forming unit. The main machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection.

The whole is in the control of servo motor system to ensure the high speed and stability, and to reduce the adjustment time for bags sizes change. It is with the advantage of high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.



Product Details


Model ZD-F350NB ZD-F450NB ZD-F550NB
Roll paper width 420-1090 mm 650-1370 mm 670-1670 mm
Max. dia. of roll paper φ1500 mm φ1500 mm φ1500 mm
Inner dia. of roll paper φ76 mm φ76 mm φ76 mm
Paper gram 60-150 g/㎡ 70-150 g/㎡ 80-150 g/㎡
Finished paper bag width 130/180-350 mm 230-450 mm 240-540 mm
Cut-off length 260-530 mm 280-630 mm 380-770 mm
Bag bottom width 65-180 mm 80-220 mm 80-280 mm
Paper gram for handle 70-90 g/㎡ 70-90 g/㎡ 70-90 g/㎡
Raw paper width for handle 100 mm 100 mm 100 mm
Flat rope width 12 mm 16 mm 16 mm
Flat handle height 75 mm 100 mm 100 mm
Flat rope distance 100 mm 109 mm 109 mm
Paper patch gram 80-110 g/㎡ 80-110 g/㎡ 80-110 g/㎡
Handle patch length 160 mm 160 mm 160 mm
Handle patch width 52 mm 52 mm  52 mm
Max. production speed 150 bags/min 140 bags/min 130 bags/min
Total power 28 KW 28 KW 30 KW
Weight 22000 KG 23000 KG 24500 KG
Overall dimensions(L*W*H) 15500*5000*2800 mm 16000*5000*2800 mm 16500*5000*2800 mm



Product Video




Product Unit Introduction:

FEEDING UNIT

The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.

JAPANESE SERVO MOTORS SYSTEM

The machine is controlled by Mitsubishi servo motors. Bags lengths and widths can be adjusted automatically.

servo

drm

BAG'S BOTTOM FOLDING UNIT

The drum for bottom folding, is with air-suction system, suitable for wide gram range of the raw paper.

BAG FORMING UNIT

Form the paper with patches and side glue into the tube; and cut into separate pieces based on the settings. Afterwards, these separate tubes will be sent to the drum to open the four corners, then bottom gluing, sealing and form the square shape consequently.

BAG COLLECTING UNIT

Compress the bags and output the finished bags. The number of paper bags processed can be displayed by the automatic collection and counting system.



Brief Introduction


This machine is specially designed to make paper shopping bags with handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection in the control of servo motors (Mitsubishi brand, imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.
