Automatic Paper Shopping Bag Machine with Twisted & Flat Handles Inline

This paper bag making machine is designed for making paper bag with both twisted handles and flat handles inline. One machine can manufacture two different paper bag types, making it an ideal choice for bag making operations looking to minimize operating costs without sacrificing quality.

  • Handle type :

    both twisted rope and flat handle

Paper Bag Making Machine with both Twisted and Flat Handles Inline

This machine is specially designed to make paper shopping bags with twisted rope handles or flat handles online. It can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection in the control of servo motors (imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency.

Different handles (rope or flat) can switched when making different paper bags, which can save the labor cost in the utmost extend, and thus it is a ideal machine for paper bag manufacturers.



Product Details


Model ZD-F350QB ZD-F450QB
Roll paper width 420-1090 mm 650-1370 mm
Max. dia. of roll paper φ1500 mm φ1500 mm
Inner dia. of roll paper φ76 mm φ76 mm
Paper gram 60/80-150 g/㎡ 70/80-150 g/㎡
Finished paper bag width 130/180-350 mm 230-450 mm
Cut-off length 260-(530 mm with handle height) 280-(630 mm with handle height)
Bag bottom width 65-180 mm 80-220 mm
Twisted rope handle height 90-100 mm 90-120 mm
Handle rope distance 76 mm 95 mm
Handle rope diameter 3-5.5 mm 3-6 mm
Handle patch length 152 mm 190 mm
Paper patch roll width 80-100 mm 85-100 mm
Paper patch gram 80-150 g/㎡ 80-150 g/㎡
Paper gram for flat handle 70-90 g/㎡ 70-90 g/㎡
Width of reel paper for flat handle 100 mm 100 mm
Flat handle height 100 mm 100 mm
Flat rope distance 76 mm 95 mm
Paper gram for handle 100-130 g/㎡ 100-130 g/㎡
Flat handle width 12 mm 15 mm
Flat handle height 75 mm 100 mm
Flat handle paper roll diameter φ1200 mm φ1200 mm
Paper patch gram for handle 100-150 g/㎡ 100-150 g/㎡
Handle paper patch roll diameter φ1200 mm φ1200 mm
Max. production speed 150 bags/min 140 bags/min
Total power 33 KW 33 KW
Weight 20500 KG 21500 KG
Overall dimensions(L*W*H) 16000*5700*2500 mm 16500*5900*2500 mm



Product Video




Product Unit Introduction:

kraft paper bag making machine

FEEDING UNIT

The roll paper fixed on the air expanding mandrel can be fed by swing arm which is equipped with lifting hydraulic system. With an alarm function, the feeding unit will sound alarm when there is no paper feeding. Improved surface smoothness of the paper during the feeding is achieved due to the web guide and uniform tension control. Paper rolls can be easily changed by pressing a button.

JAPANESE SERVO MOTORS SYSTEM

The machine is controlled by Mitsubishi servo motors. Bags lengths and widths can be adjusted automatically.

servo

tissue bag making machine

BAG'S BOTTOM FOLDING UNIT

The drum for bottom folding, is with air-suction system, suitable for wide gram range of the raw paper.

BAG FORMING UNIT

Form the paper with patches and side glue into the tube; and cut into separate pieces based on the settings. Afterwards, these separate tubes will be sent to the drum to open the four corners, then bottom gluing, sealing and form the square shape consequently.

BAG COLLECTING UNIT

Compress the bags and output the finished bags. The number of paper bags processed can be displayed by the automatic collection and counting system.



Brief Introduction


This machine is specially designed to make paper shopping bags with handles inline fully automatically. The handles will be delivered to the main machine after being produced by the handle making unit, and being cut and pasted to the paper. This machine can form the paper bag in one process from the paper roll, handle patching, side gluing, tube forming & cutting, bottom creasing & gluing and forming to bags collection in the control of servo motors (Mitsubishi brand, imported from Japan) to ensure the high precision and stability, simple maintenance and high efficiency. Thus it is an ideal equipment for printing houses and paper bag manufacturers.

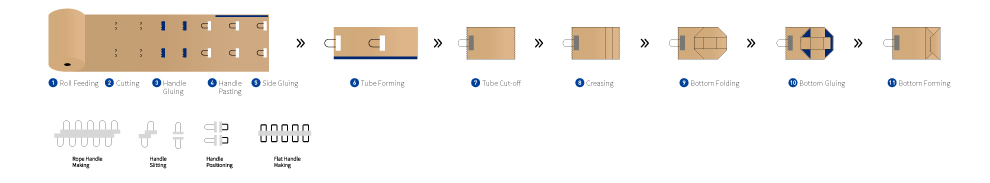

流程图

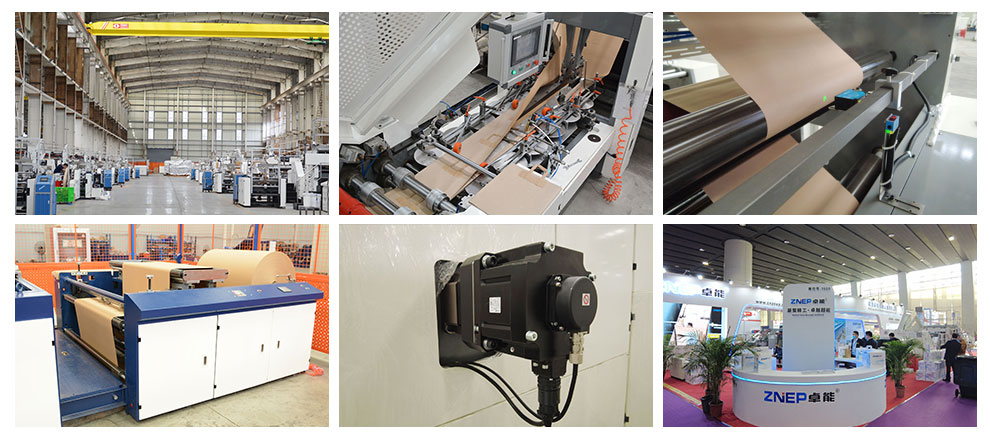

Details Images




Company Profile

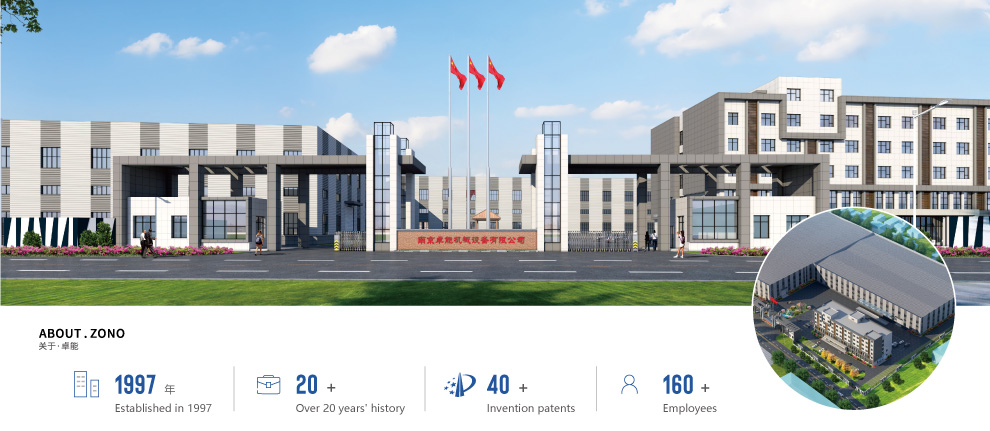

About us

Our company was founded in 1997, and initially engaged in the producton and sales of precision components: Since 2002, we have been engaged in the research, development, manufacturing and sales of automatic pocket and wallet style evelope machines. In 2008 due to the compay's development needs, we moved to Gaochun Develooment Zone in Naning and established Naning Zono Machine Equipment Co, Ltd, specializing in the research, development, manufacturing, and sales of fully automatic paper bag machines. Since its estabishment, the compay has always implemented the business philosoohy of "based on quality in the market, winning customers by service, creating brands with reputation, and leading development with innovaton". We closely adhere to the internal management of the company and stricly implement ISO9001 quality system standards and CE safety certficaton, in recent years, we have sucessively obtained and been recognized as a high-tech enterprise, intelligent packaging engineering technology center, enterprise technology center, enterprise industrial design center, China's high-quality products, Jiangsu qualty and nteorty 3A eve drand erterorse. and neary 40 invention patents. Our company aways adheres to the oeore-orented deve ooment an osomh actvely everaoes the power of the eam, unites more outstanding people to participate in the development process of the enterprise. and allows truly talented people to maxmize their value. and grow and develop together with the enterprise. We firmly beleve that Zono company will become a leader in the paper bag machine manutacturing industry in the near future. This is our goal and our great & glorious task.



Certifications






User world distribution map




Our users are located around the world

We have dients worldwide, for example,South-East Asians such as South Korea (Daegu, Paju-si), Vietnam, Cambodia, Philippines, India (Mumbai, New Delhi), Indonesia, Pakistan; European countries such as Spain (Madrid, Tenerife), Portugal, Finland, Ukraine, Turkey (lstanbul, Konya); North America such as USA, Canada (Toronto, Trois-rivers, Winnipeg); South America such as Uruguay, Chile, Guatemala; Mid East such as Palestine, Syria; African countries such as Tanzania (Arusha, Moshi), Kenya (Nairobi, Nakuru, Malindi, Algeria, Cote D'Ivoire, Morocco (Tangier, Casablanca). Domestic cooperative customers such as some listed enterprises, and well-known enterprises in the industing packaging and printing.
